Signalling and Control
Protection for critical trackside signalling and control equipment.
Engineered in Europe
Built for the World
0800 122 3912
contact@aliastradinguk.com
7–15 Greatorex Street, London, E1 5NF
≤ 7h
Typical single or double installation
8 years
Standard warranty, extendable
IP54
Standard; IP65 optional
200+
Installed on SNCF Réseau
Product Overview
Protect the Equipment. Replace the Enclosure.
SafeBox RT is a modular aluminium signalling cabinet developed to replace deteriorated enclosures while retaining the existing signalling equipment and internal wiring. It can also be supplied for new installations.
The cabinet combines a sealed rodent-resistant enclosure, passive ventilation and thermo-regulation, and mechanical and environmental protection suited to operational railway environments. More than 200 units are in service on the French high-speed rail network.
01
Passive Thermo-Regulation
Passive airflow limits the internal temperature to no more than +7°C above ambient without drawing power from the equipment inside the cabinet.
02
Rodent and Environmental Protection
Sealed joints, gaskets and protected cable-entry points reduce the risks of rodent ingress, dust, water and contamination.
03
Existing Equipment Retained
Modular panels are assembled around the existing equipment so internal wiring and connections can remain untouched.
04
Minimal maintenance
Marine-grade aluminium and a powder-coated finish provide long-term protection without routine repainting.
05
Proven reliability
SafeBox RT has been deployed since 2018, with more than 200 units installed on the French railway network.
Engineering Detail
Designed to address key failure modes
Modular panel system
Single, double and triple configurations using removable and fixed aluminium panels.
Passive thermal regulation

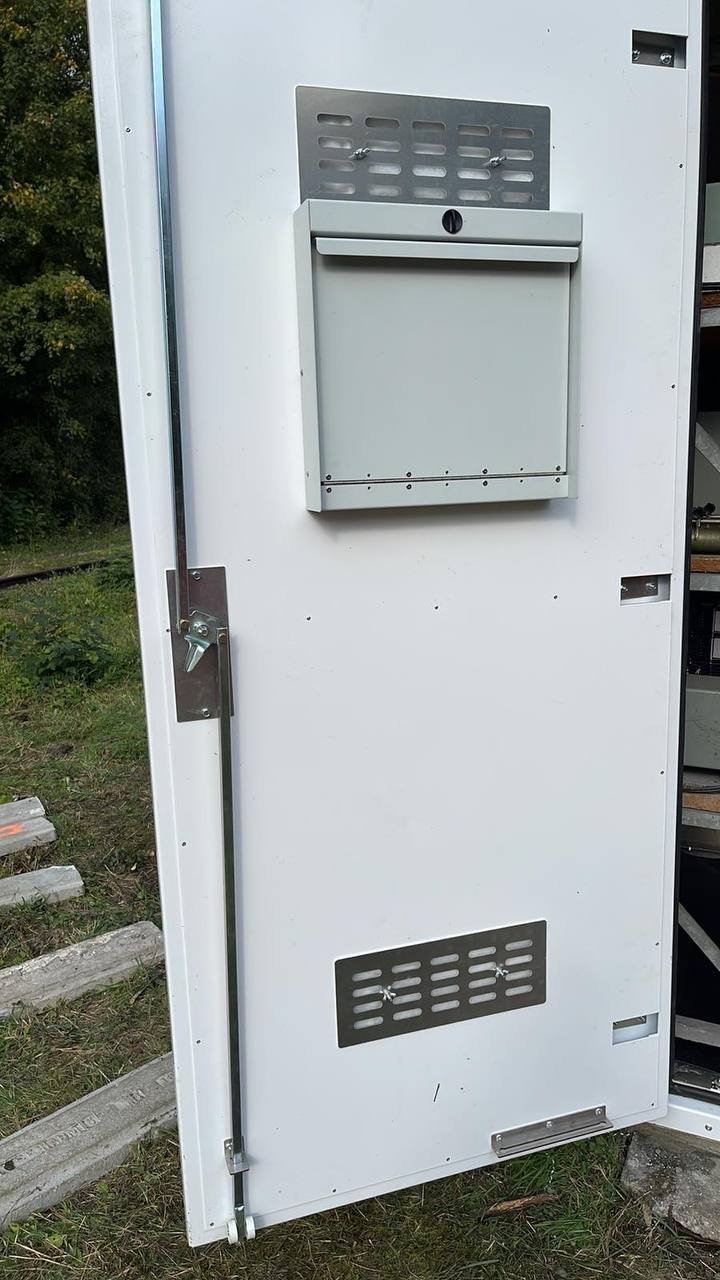

Filtered top and bottom ventilation provides natural airflow without drawing power from the equipment inside.
Anti-stagnation roof
The sloped roof supports water drainage, while its reflective finish reduces solar heat gain.
MT08045 cable entries
Cable-entry points use an MT08045-compliant sealing approach to reduce rodent and environmental ingress.
Anti-slip aluminium floor
The coated aluminium floor includes cable hatches and can be configured for slab or raised-platform installations.
Single-Shift Installation
Single and double configurations can typically be installed within seven hours, subject to site and operational constraints.

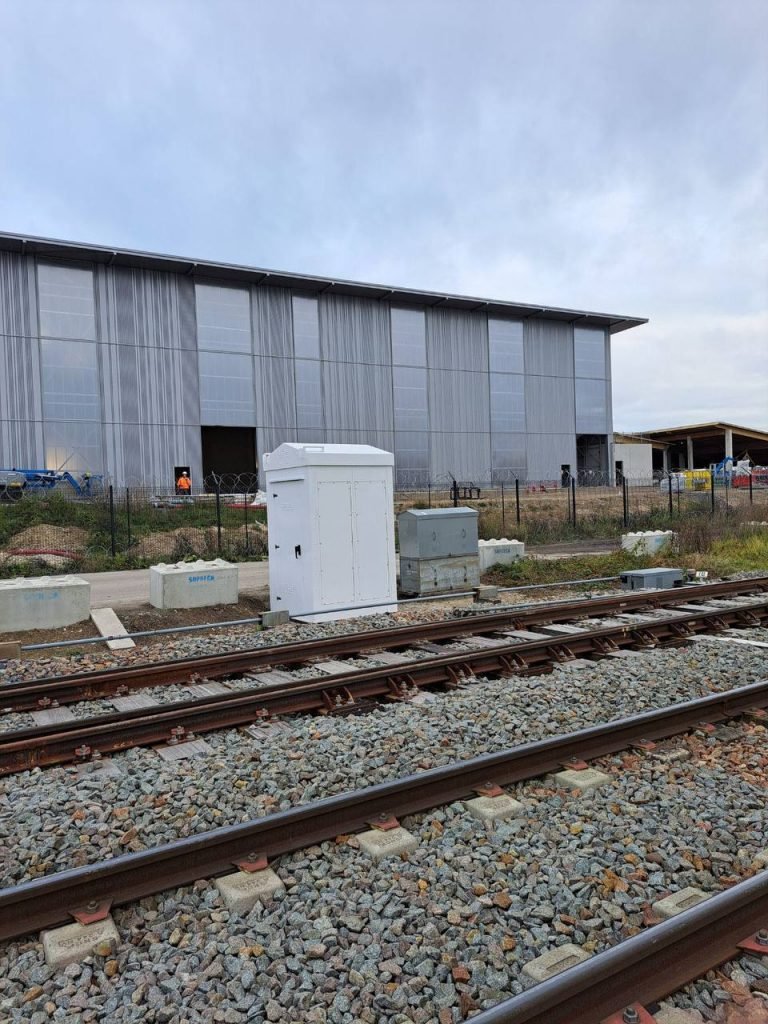

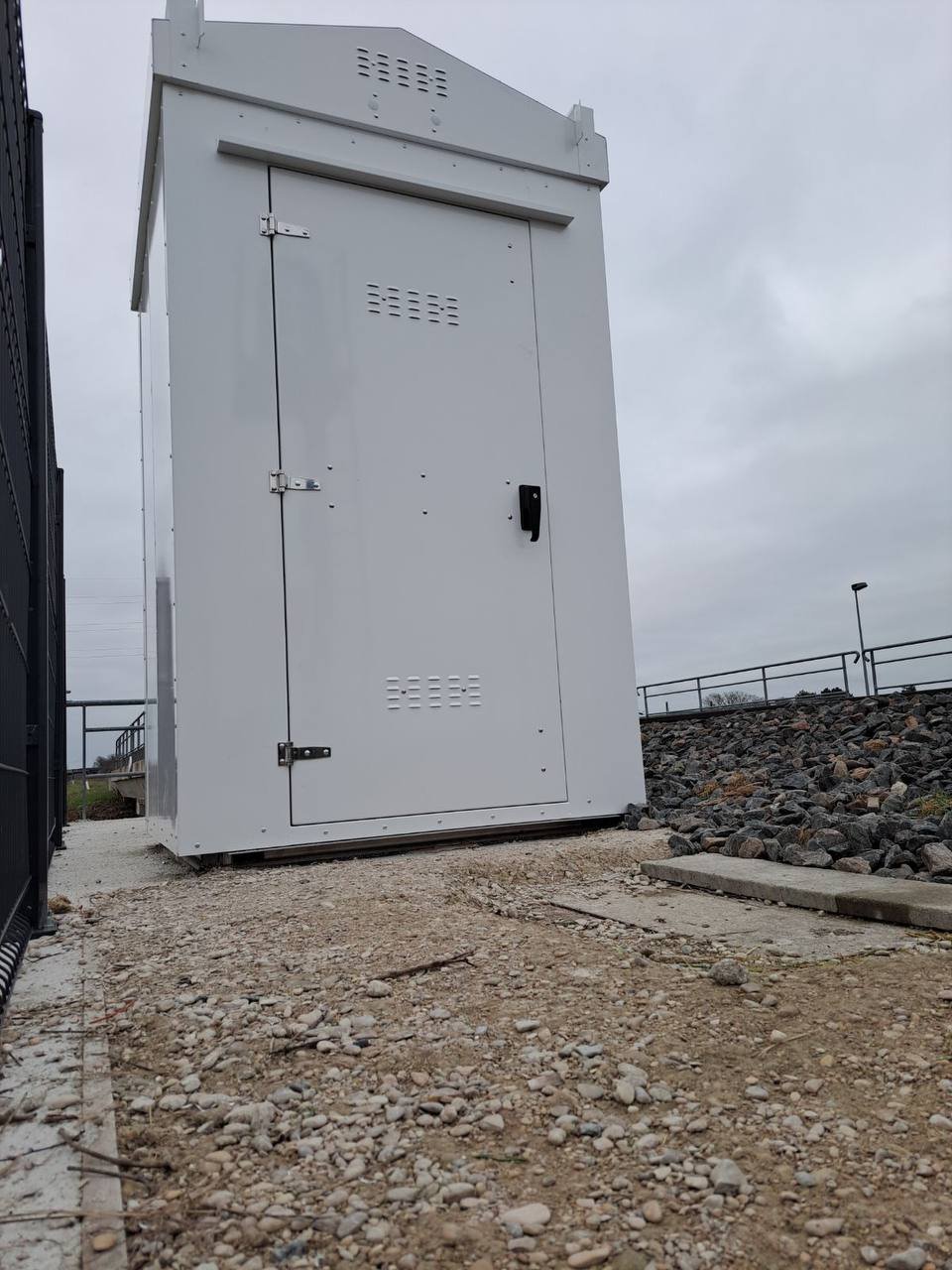

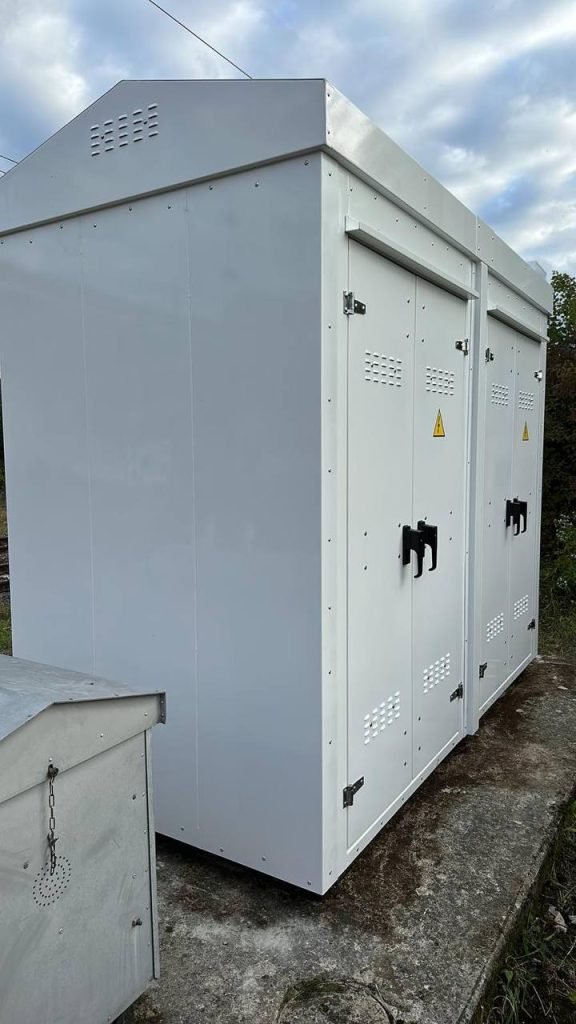

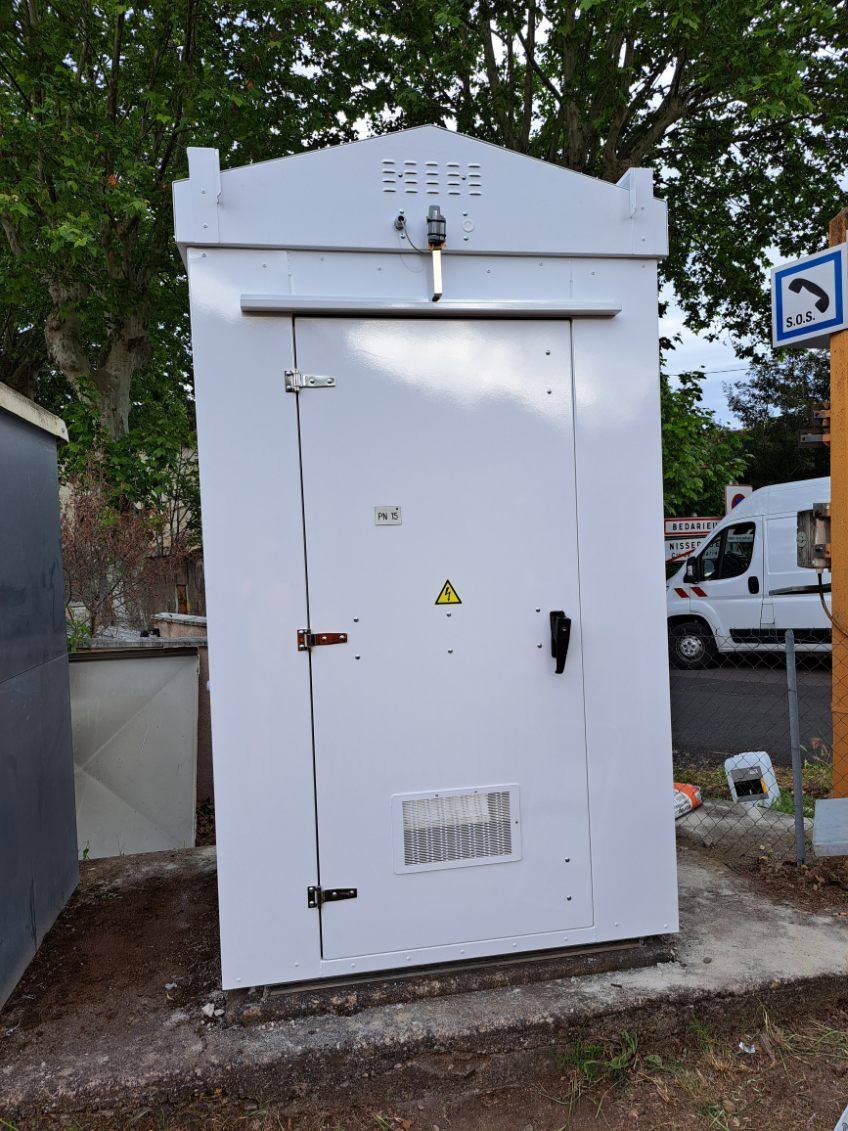

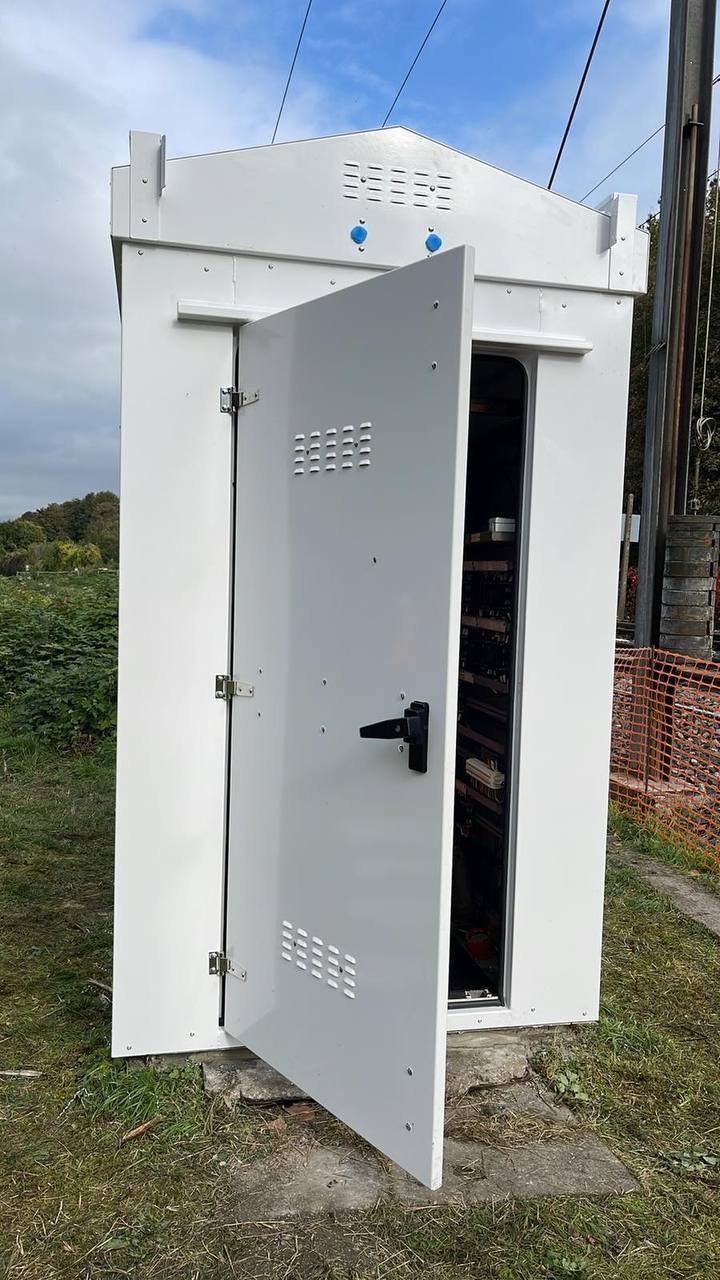

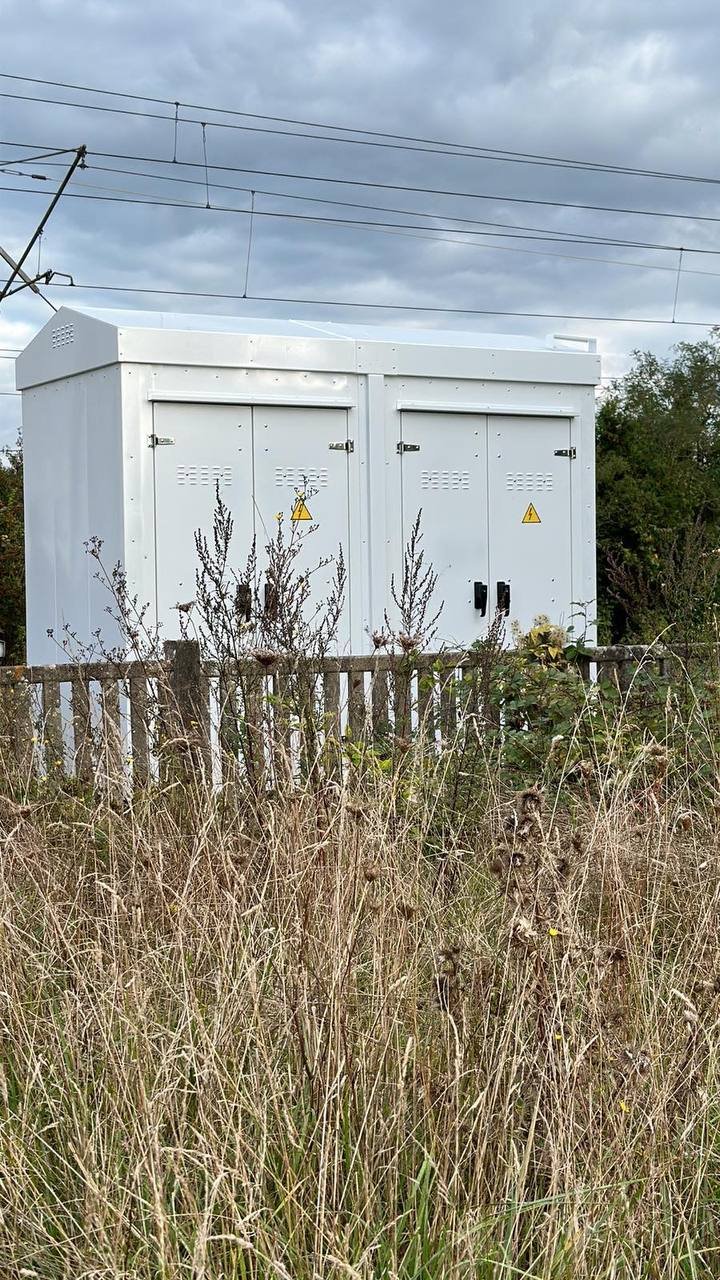

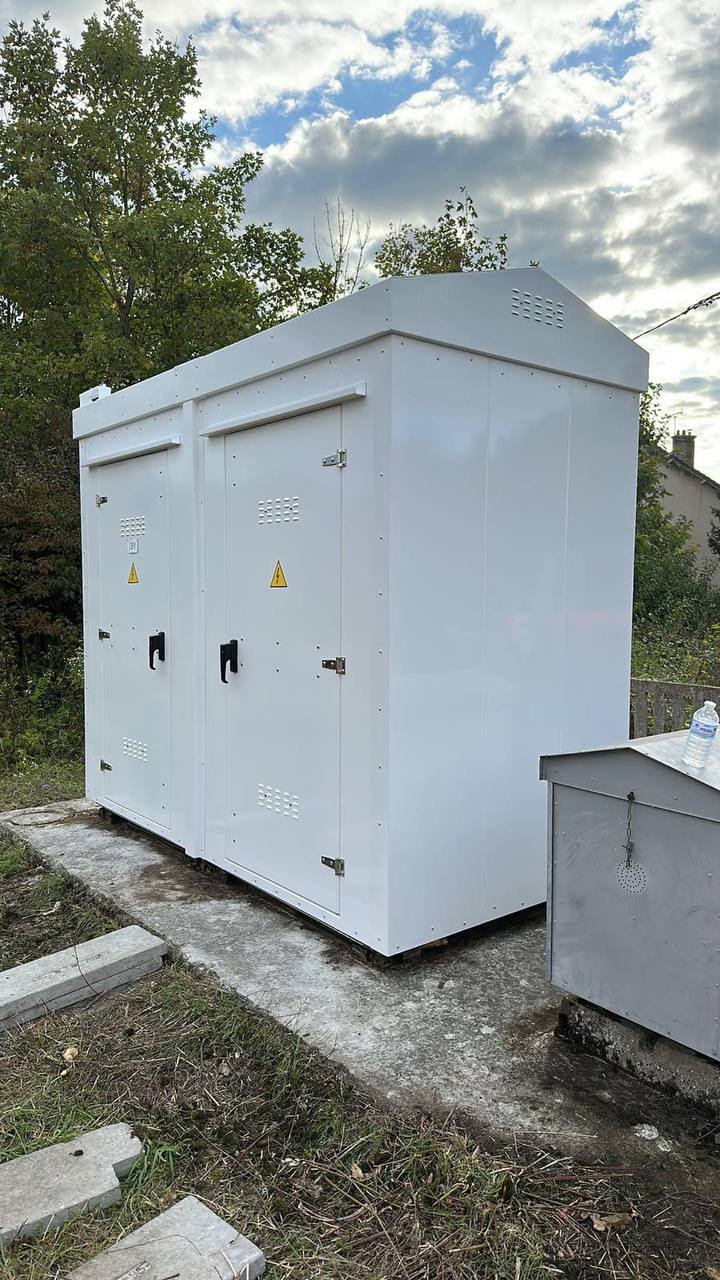

In Service
SafeBox RT on site
Technical Specification
SafeBox RT data sheet
Structural specification
| Material | Marine-grade aluminium with a powder-coated RAL 9010 finish |
| Configurations | Single, double and triple modular formats |
| Panel design | Removable and fixed aluminium panels |
| Roof | Sloped anti-stagnation design for water drainage |
| Floor | Aluminium with anti-slip coating and cable hatches |
| Weight | Lightweight modular components designed to avoid heavy lifting equipment |
| Foundation | Compatible with concrete slabs and raised platforms |
Thermal regulation and climate
| Regulation method | Passive airflow through filtered top and bottom ventilation |
| Max ambient capability | Tested at +37°C external ambient temperature |
| Internal temperature | No more than +7°C above external ambient temperature |
| Condensation control | Designed to reduce condensation risk through controlled passive ventilation |
| Energy use | No power drawn from the equipment inside the cabinet |
| Paint finish | Reflective white, UV-resistant finish that reduces solar heat gain |
| Vent shielding | Filtered and protected against tampering |
Rodent and insect protection
| Cable entry sealing | MT08045-compliant |
| Sealing points | Cable entries, panel joints, floor hatches and cable ducts |
| Enclosure rating | IP54 as standard; IP65 available as an option |
Where It Is Used
Applications
02
High-Speed and Urban Rail
Suitable for railway environments comparable with the French high-speed and urban networks.
03
Live-Site Renewal
Replacement of deteriorated enclosures while retaining existing equipment and internal wiring.
04
New Installations
Can also be supplied for new signalling, control or communications equipment.
Specify SafeBox RT on your next renewal
Send us the site constraints and existing enclosure dimensions. We return a configuration, a slab plan and an installation window.
