Live Signalling Cabinet Renewal

A deteriorated legacy signalling enclosure was replaced with a SafeBox RT double cabinet, manufactured to the measured site conditions and assembled around the existing operational equipment.

Sector
Rail signalling
Product
SafeBox RT double
Location
Île-de-France
On site
6h 40m
Signalling rack standing exposed on its base with the old enclosure removed Before
The signalling rack with its shell gone: relays and terminations open to weather, dust and rodents.

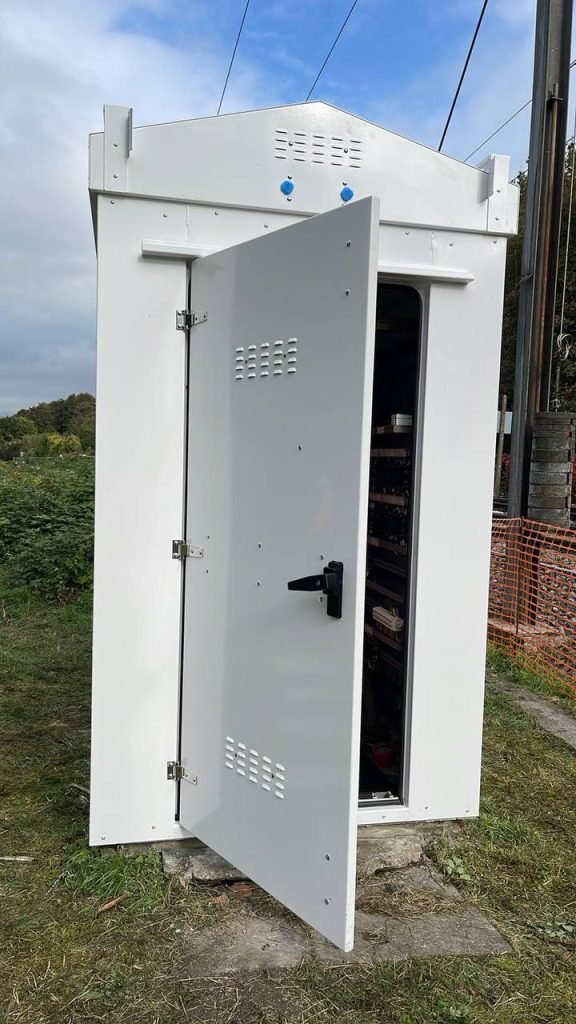

New cabinet built around the live rack with the door open on the equipment During
Panels assembled around the live rack, with the equipment reached through a full-height door.
Completed SafeBox RT enclosure closed beside the running line After
The completed enclosure: sealed, ventilated at roof level and back in service the same shift.

The brief

The existing enclosure had reached the end of its serviceable life. Corrosion and deteriorated panel joints were reducing its ability to protect critical signalling equipment from moisture, contamination and temperature-related stress.

The replacement solution had to retain the existing signalling rack and internal wiring, fit the established concrete base and minimise the operational impact of the work.

What we did

ALIAS completed a dimensional site survey and assessed the condition and compatibility of the existing base before manufacturing the replacement cabinet.

The modular SafeBox RT panels were then assembled around the existing signalling rack. Internal wiring, terminations and equipment connections remained undisturbed throughout the installation.

Cable entry points were mechanically protected and sealed, and the cabinet ventilation, access and locking systems were checked before handover.

  • Detailed site survey and dimensional verification.
  • Assessment of the existing concrete base.
  • Manufacture of a double-width modular aluminium cabinet.
  • Assembly around the existing signalling equipment.
  • Protection and sealing of cable entry points.
  • Final inspection and handover checks.

The result

The existing signalling equipment was enclosed within a new rodent-resistant and passively thermo-regulated SafeBox RT cabinet during the same site intervention.

The original rack and internal wiring remained in place, while the replacement enclosure provided improved mechanical and environmental protection, controlled ventilation and safer maintenance access.

6h 40m

Recorded site time

0

Internal connections modified

≤ +7°C

Thermal performance above ambient

Existing

Base and signalling rack retained
